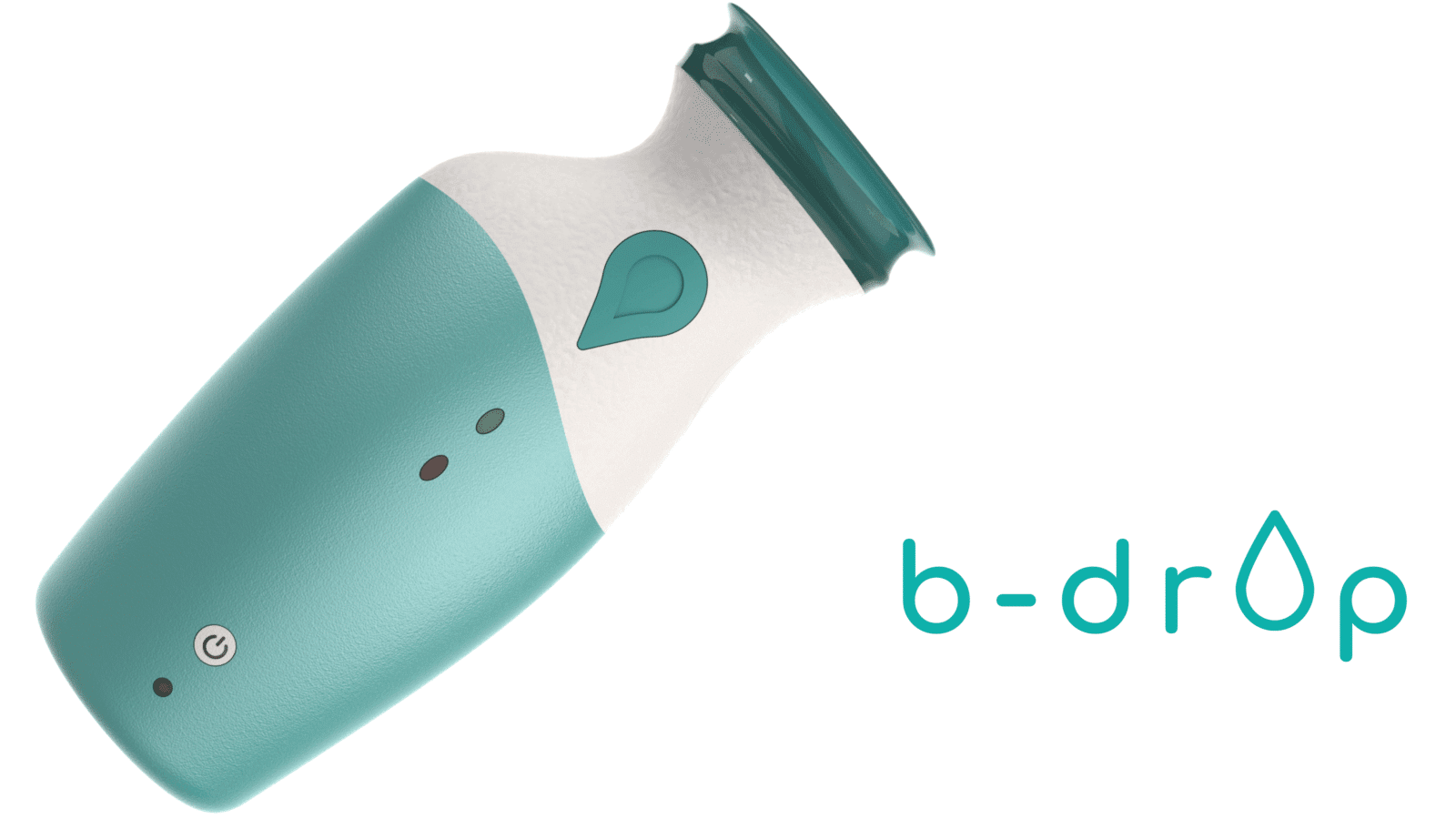

b-drop: Promoting Topical Medical Adherence

trophy Awarded

In eye care, treatment adherence refers to the correct and consistent use of medications. Successful adherence is essential to prevent avoidable vision loss and maintain quality of life. However, 300,000 Australians living with conditions such as glaucoma and dry eye disease face physical, emotional, and cognitive barriers that make it difficult to follow treatment plans. As a result, a large number are unable to administer their eye drops independently.

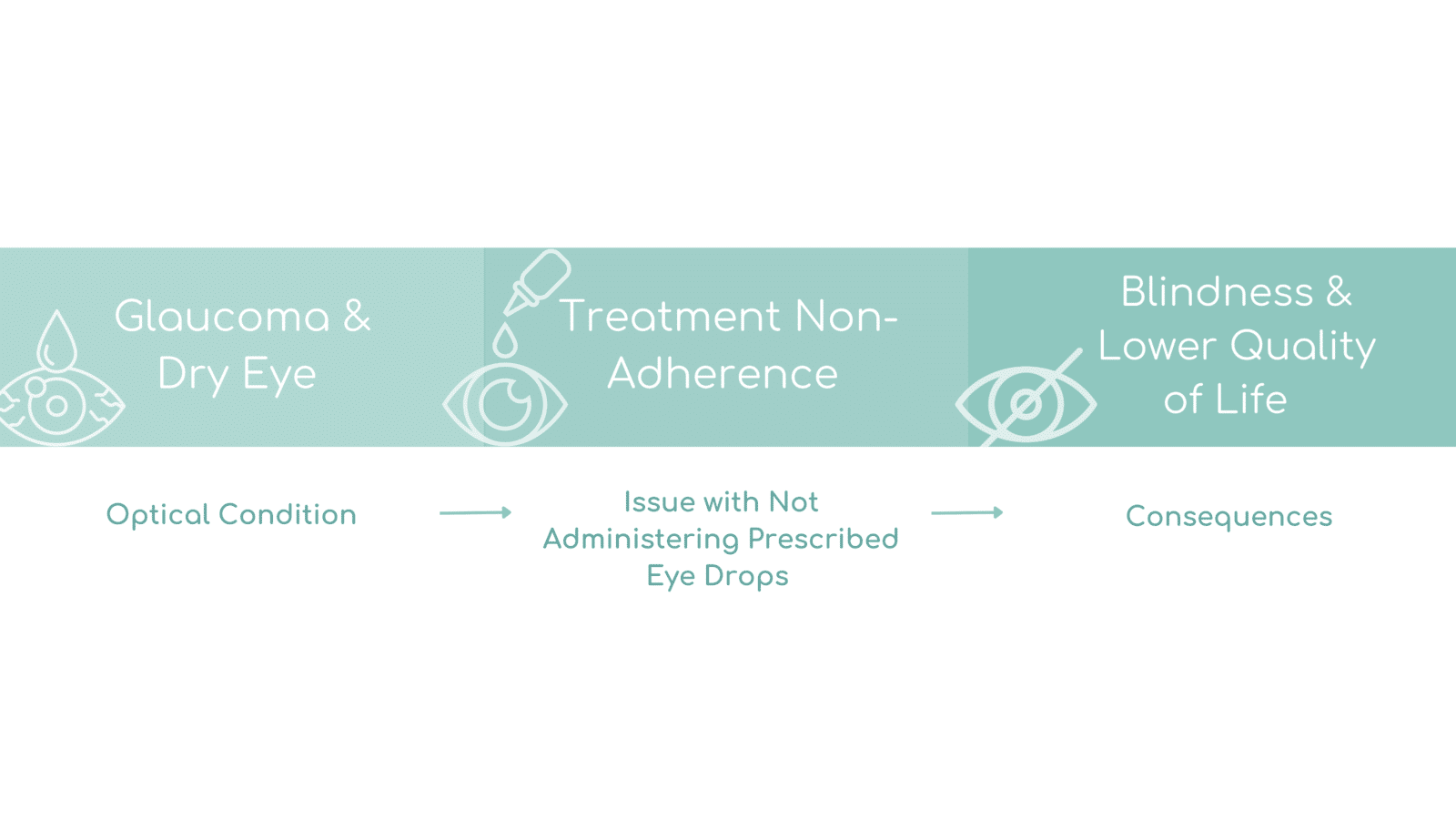

BACKGROUND & RESEARCH

glaucoma & dry eye disease

Glaucoma and dry eye disease are both conditions that require similar treatment approaches, including timed administration of multiple eye drop regimens.

Glaucoma is one of the leading causes of irreversible blindness globally, with nearly 80 million people estimated to be affected in 2020. Out of these 80 million, at least 10 % of those were classified as legally blind (Glaucoma Australia, 2021) As per Optometry Australia (2024), Glaucoma is “a chronic eye disease which progressively damages the optic nerve, usually from elevated pressure inside the eye, …leading to irreversible blindness (if untreated).’ The effectiveness of glaucoma medication relies heavily on patient adherence to treatment, which often involves using several eye drops multiple times per day.

“Dry eye disease is a multifactorial disease of the tears and ocular surface that results in symptoms of discomfort, visual disturbance, and tear film instability with potential damage to the ocular surface” (Optometry Australia, 2024).

Barriers to Treatment Adherence

Intentional and unintentional non-adherence can result from poor instillation technique, preventing patients from achieving optimal ocular health outcomes. Physical barriers to adherence may include Parkinson’s disease, arthritis, reduced upper limb mobility, limited dexterity, or reduced strength and grip. The b-drop device aims to support independent and accurate eye drop administration, helping patients maintain dignity and confidence in their treatment routine. Emotional barriers such as psychological, cognitive, and motivational challenges may also impact adherence, often leading to feelings of shame, embarrassment, or frustration when doses are missed.

Research Question & aim

Agency for product innovation

“Some patients make the decision they will go blind from glaucoma, rather than struggle with daily eye drops.”

– Optometrist at Optical SuperStore

“I’ve had patients say to me they’re not interested in using drops because they know they will not be able to use them.”

– OPTOMETRIST AT OPTICAL SUPERSTORE

“I think any tool that empowers a patient to ‘take charge’ of their condition is worthwhile – sometimes, it can be the seemingly lack of control a patient has on their condition that can be detrimental to accepting diagnosis.”

– Optometrist & Glaucoma Australia Board Member

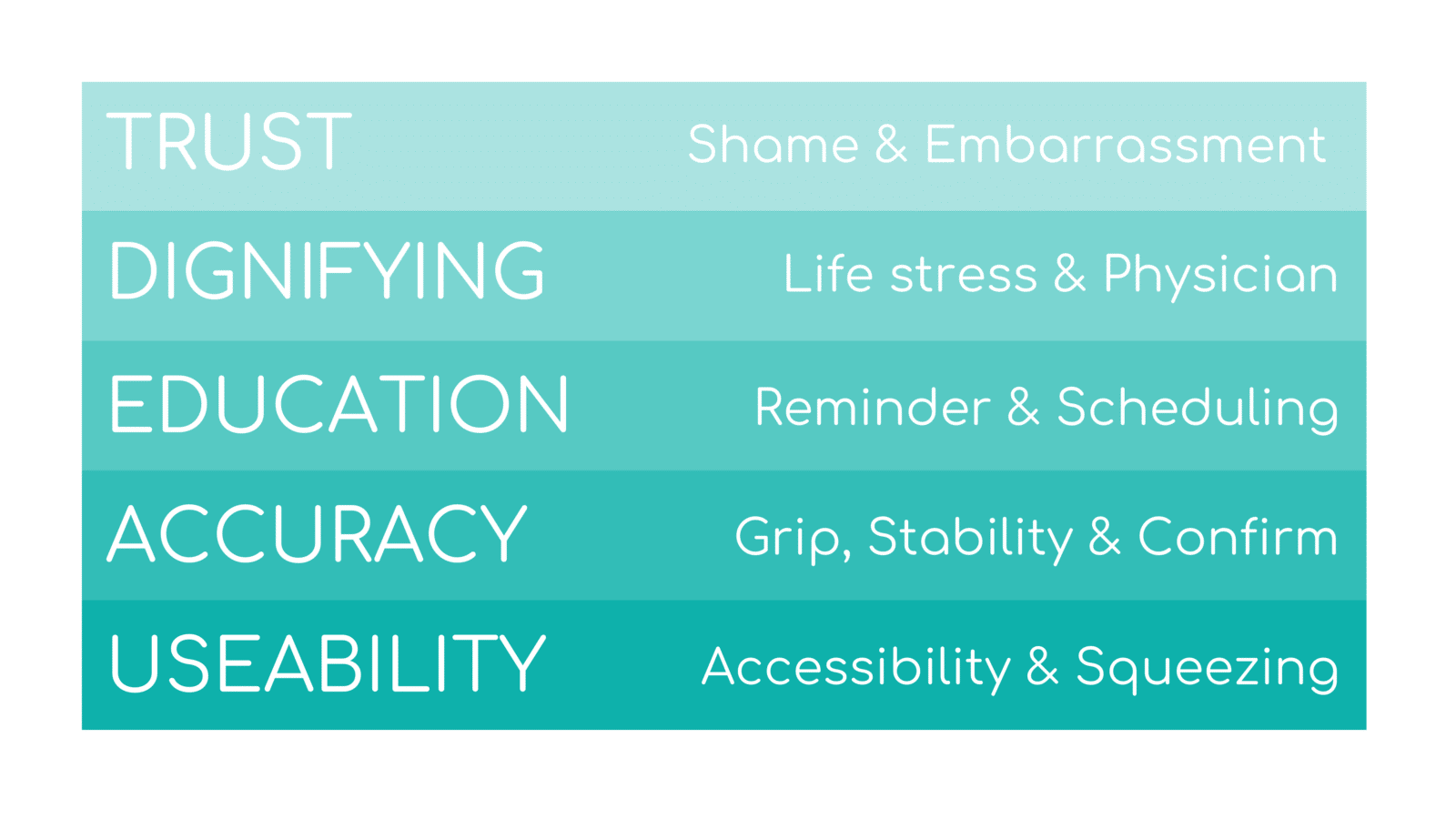

Research Summary

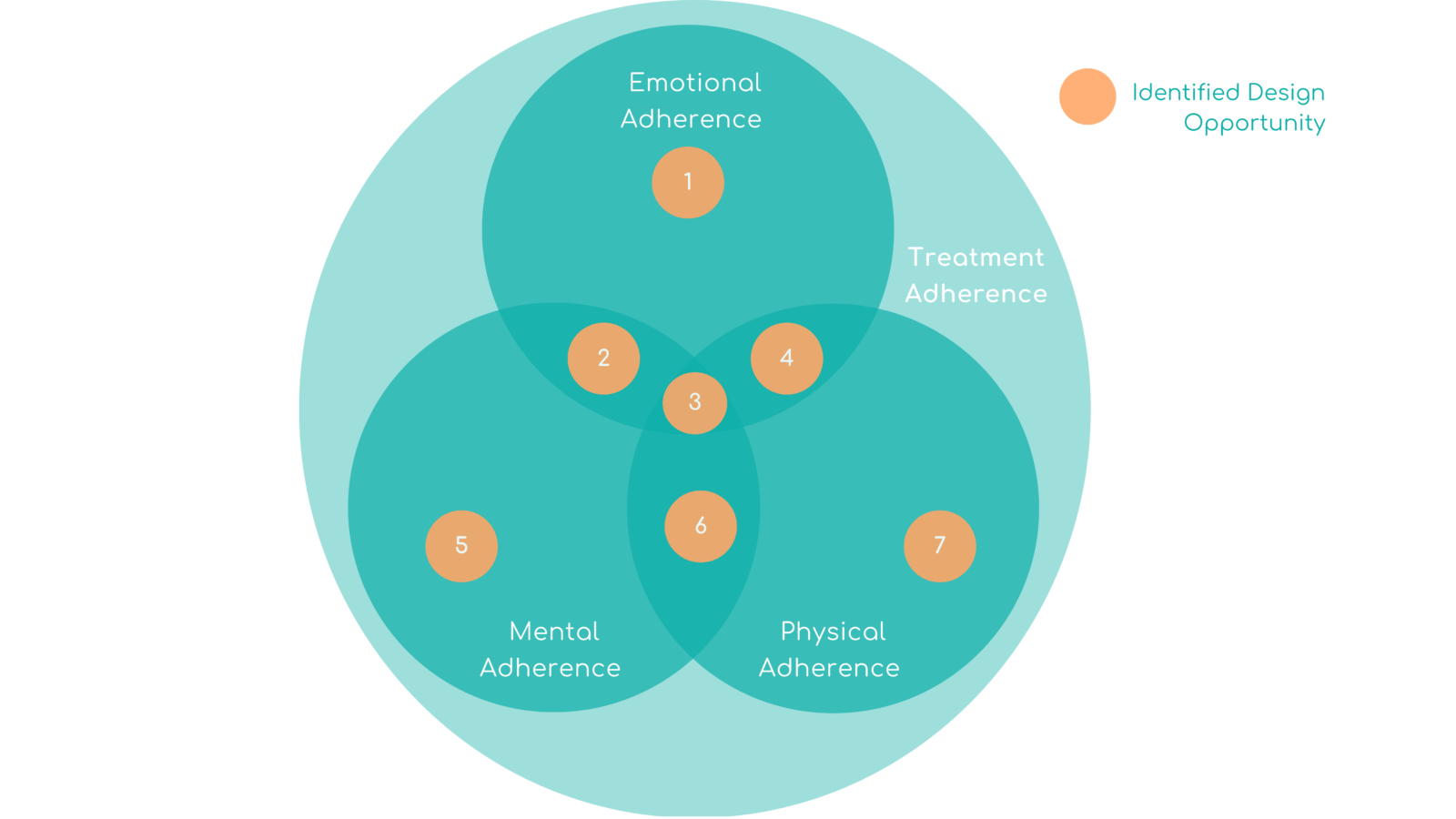

dESIGN OPPORTUNITY & GAPS IN MARKET

As identified in the research report, there is a clear design opportunity for marketable, affordable, and accessible devices that reduce both the emotional and physical barriers to treatment adherence for people with glaucoma and dry eye disease. This highlights the need to innovate a product experience that addresses the current gap in accessible eye drop assistive devices by supporting patient education, providing reminders, and ensuring accurate drop administration.

Report

Name
Report
File Type
application
File Size
4 MB
Download File

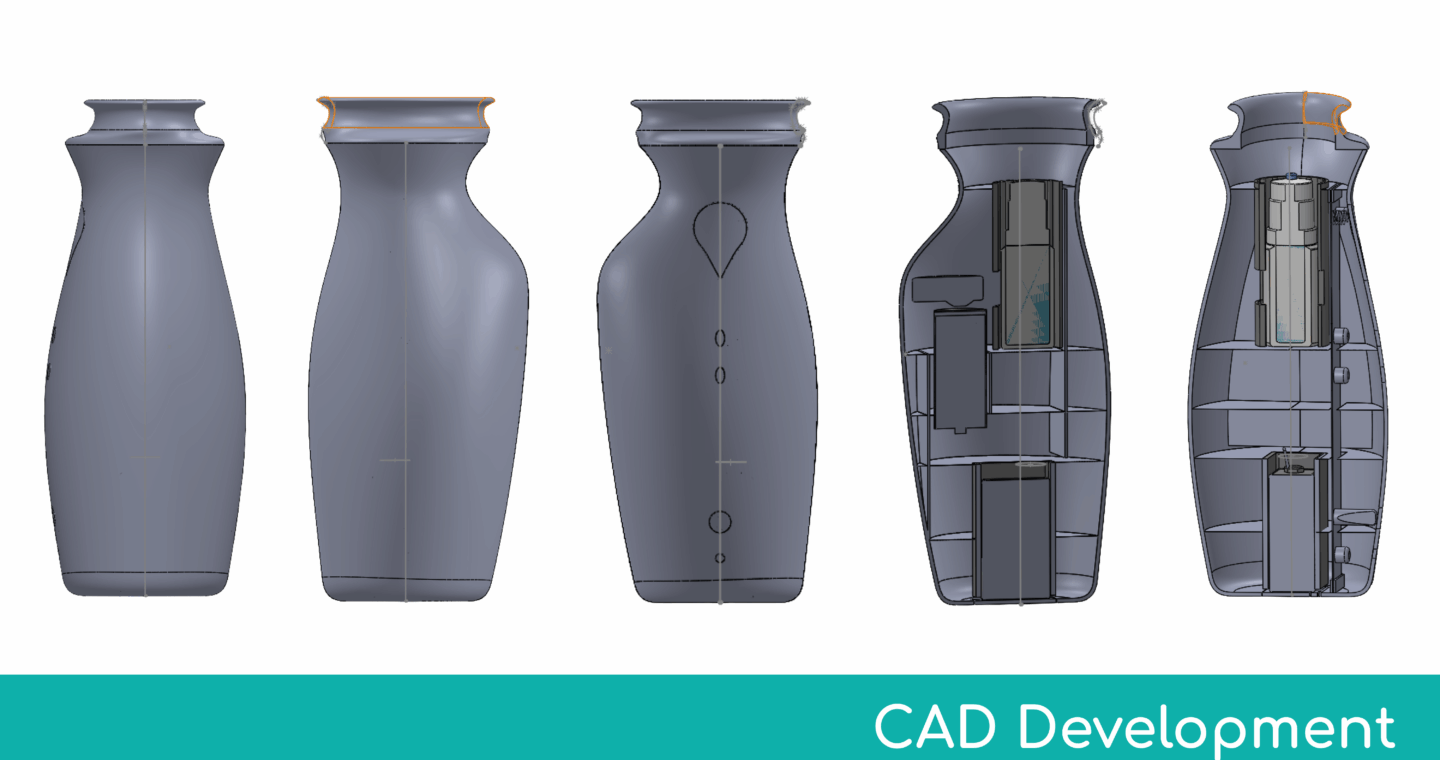

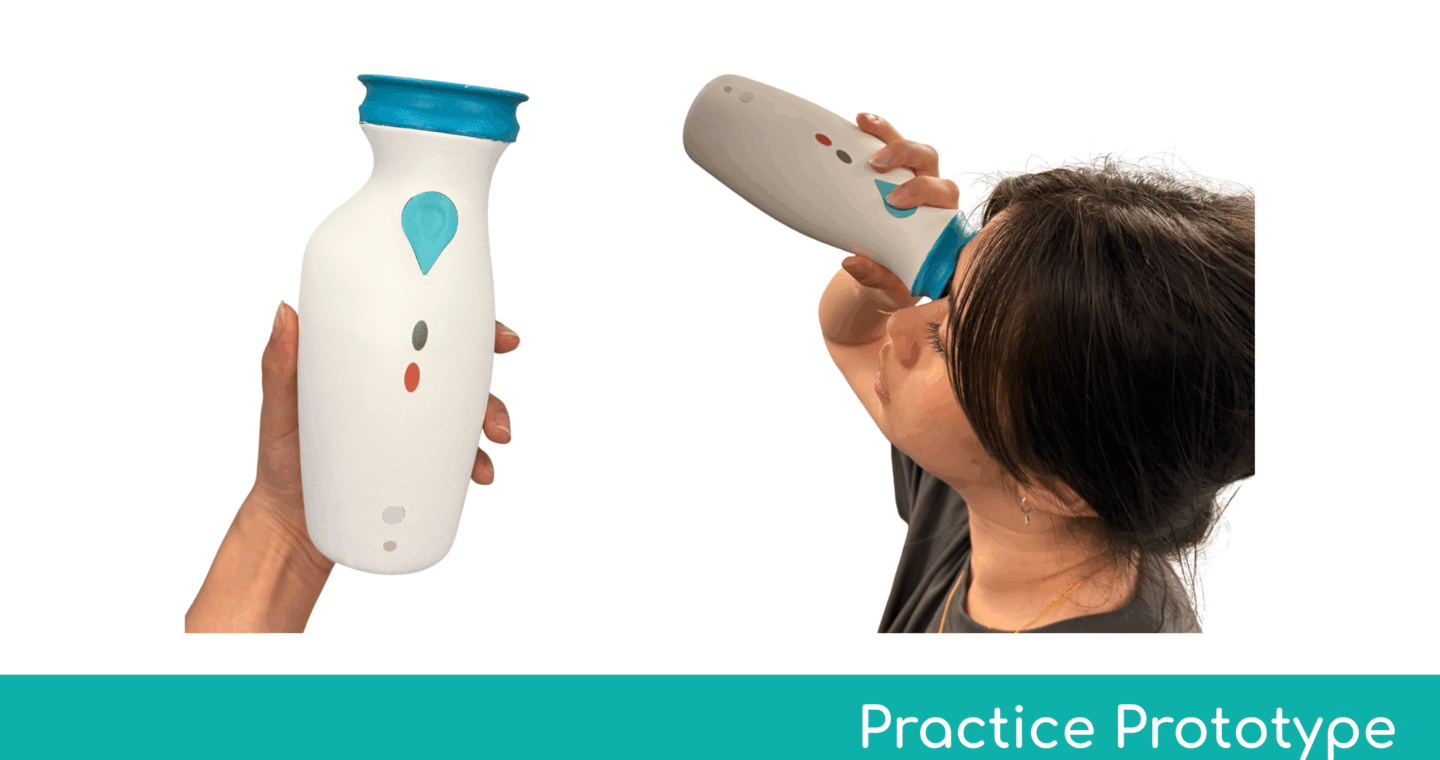

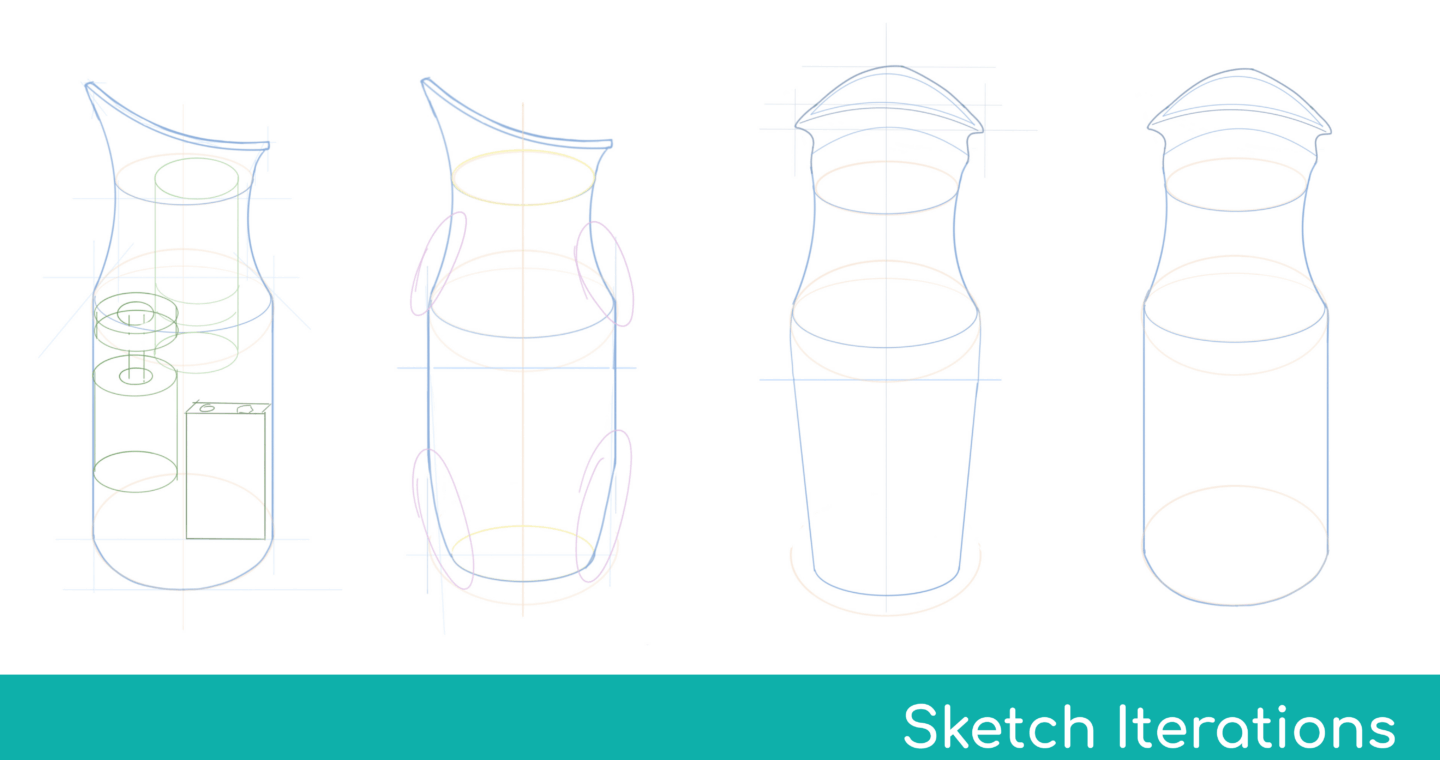

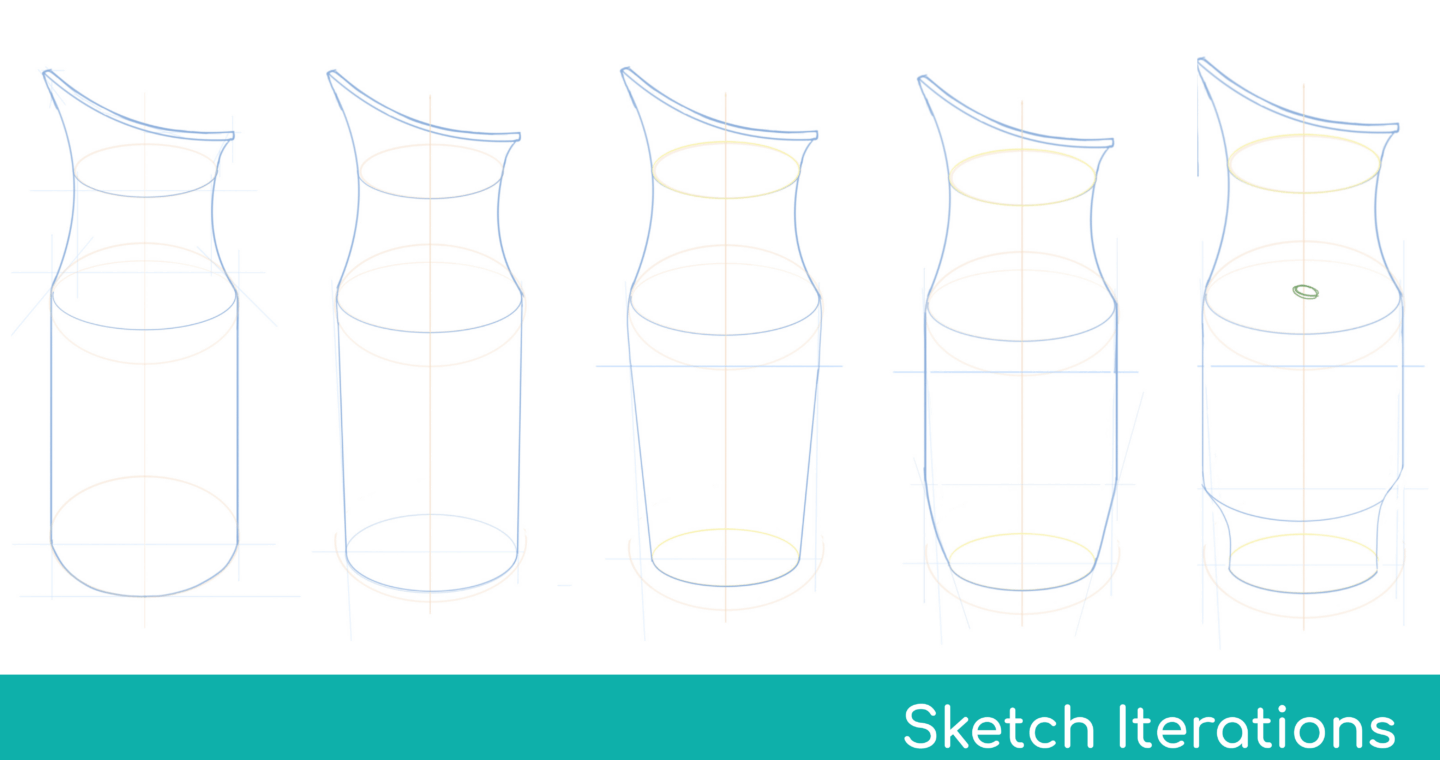

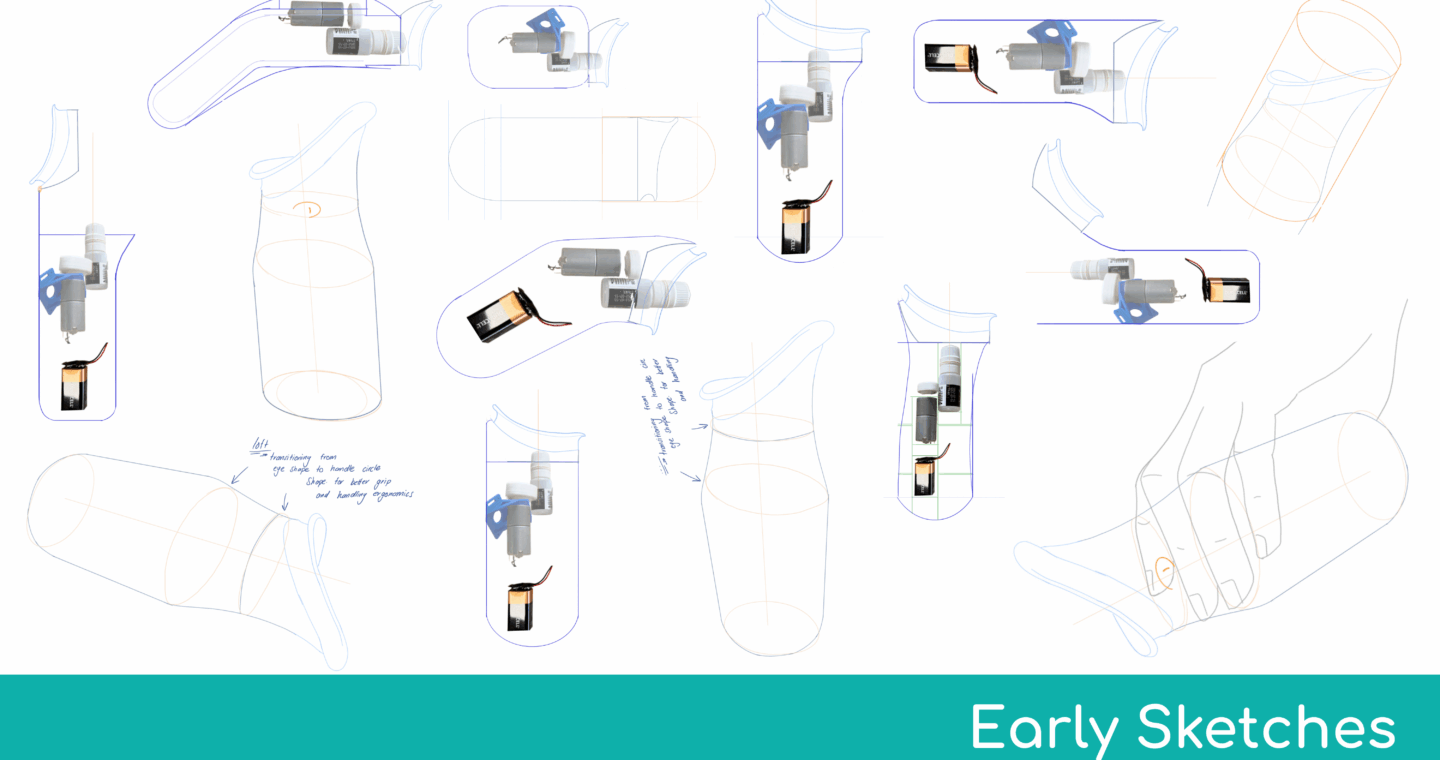

Design development

Design Development Report

Name
Design Development Report | Part 1 | Reseach
File Type
application
File Size
8 MB
Download File
Name
Design Development Report | Part 2 | Data Collection
File Type
application
File Size
4 MB
Download File
Name
Design Development Report | Part 3 | Concept Iterations
File Type
application
File Size
8 MB
Download File
Name
Design Development Report | Part 3 | Final Designs
File Type
application
File Size
7 MB
Download File

Final outcome

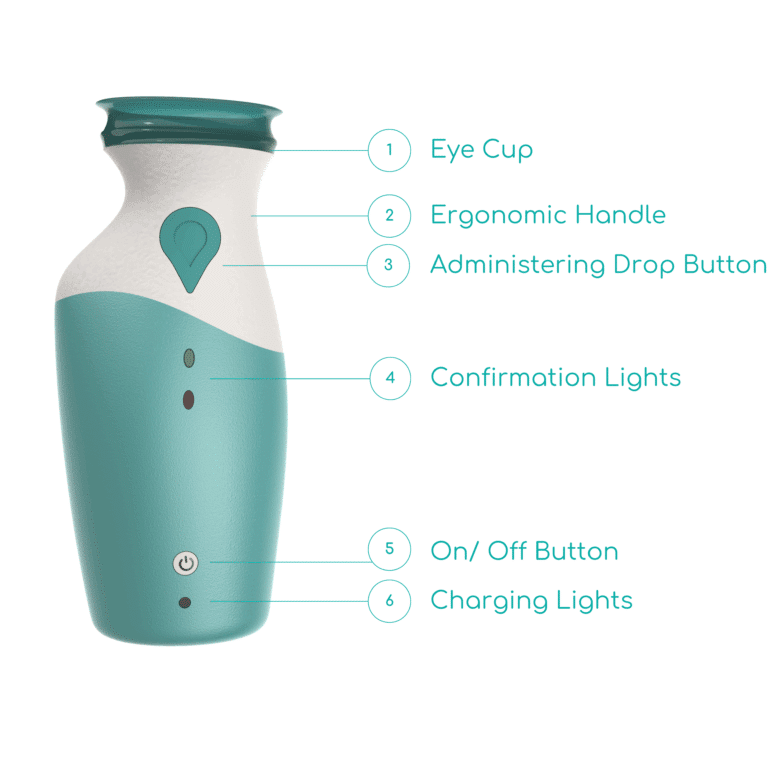

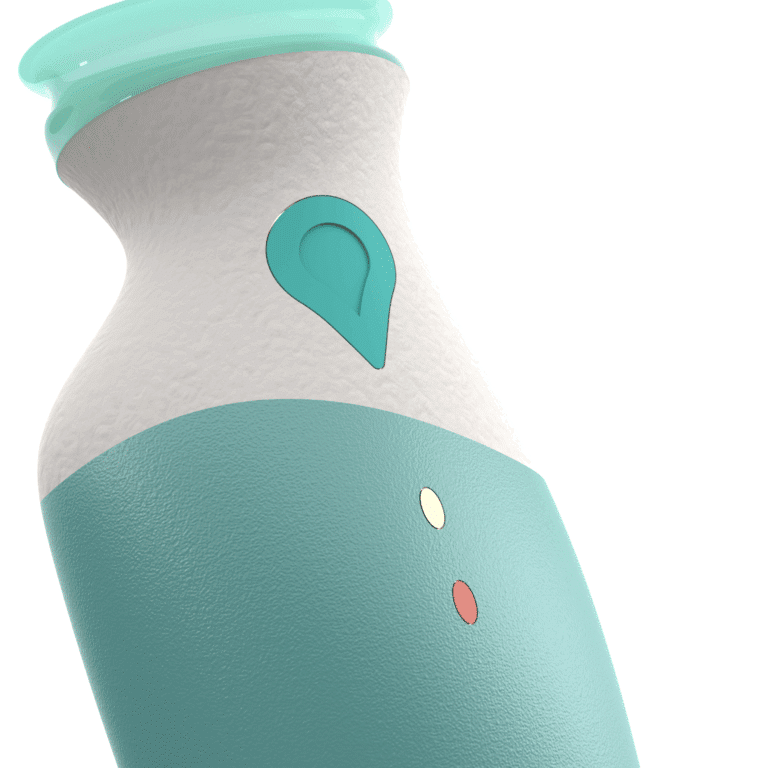

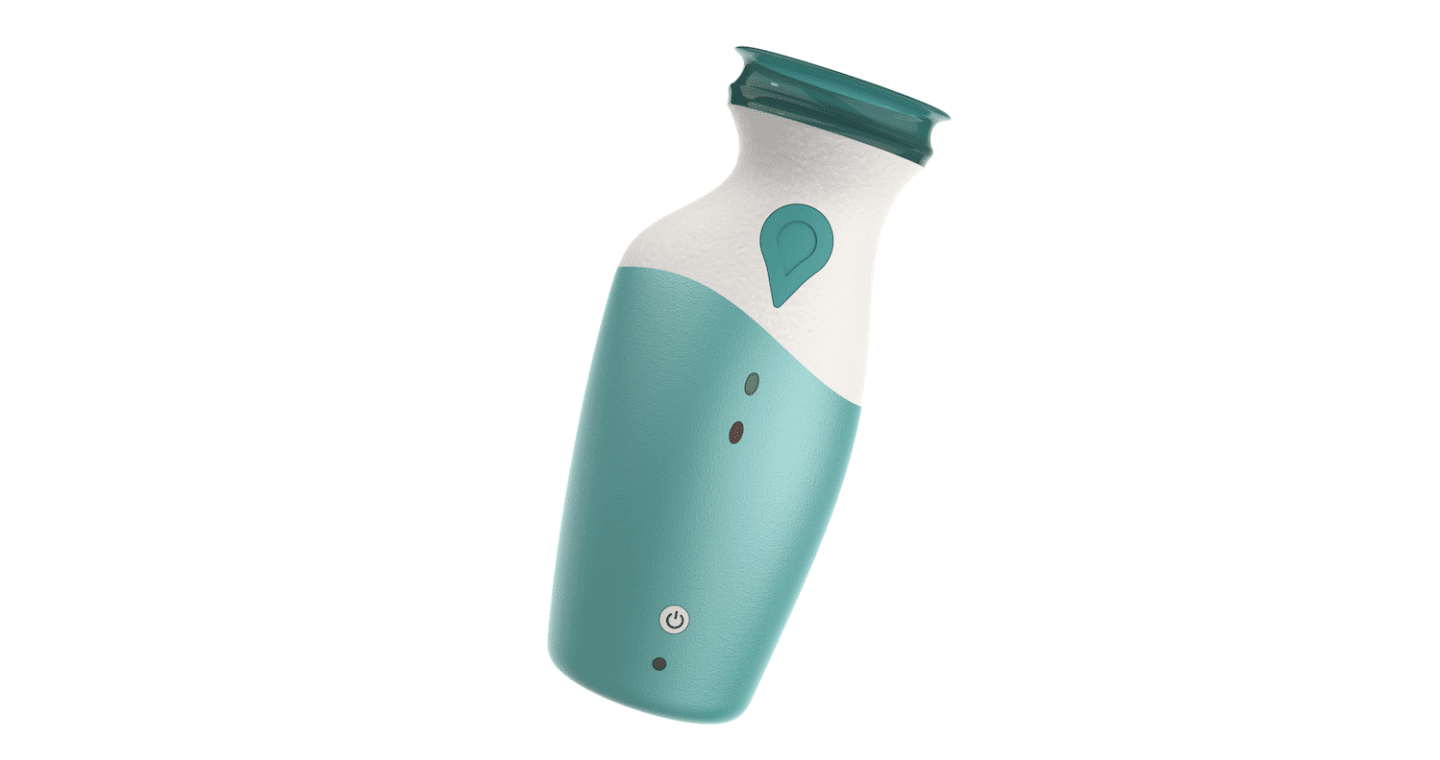

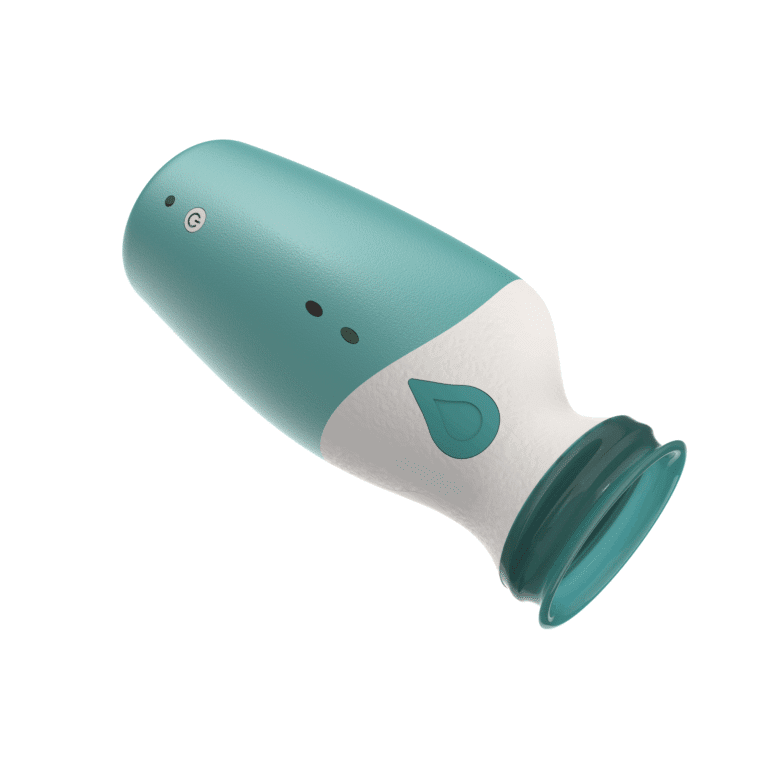

External Features for User Centered Design

1. Eye Cup
Ergonomically designed to accommodate users from the 50th percentile female to the 99th percentile male. Constructed from silicone to ensure comfort and provide a soft contact surface. The silicone material was specifically chosen for its ability to flex and contour to the facial area surrounding the eye, enhancing stability when the device is positioned for use. By securely and comfortably covering this surface area, the eye cup helps keep b-drop steady, supporting accurate alignment and improving the angle of eye drop administration.

3. Drop Administration Button
Functions as a clear signifier to indicate the correct angle for accurate eye drop delivery from the b-drop device, supporting user confidence and correct alignment.

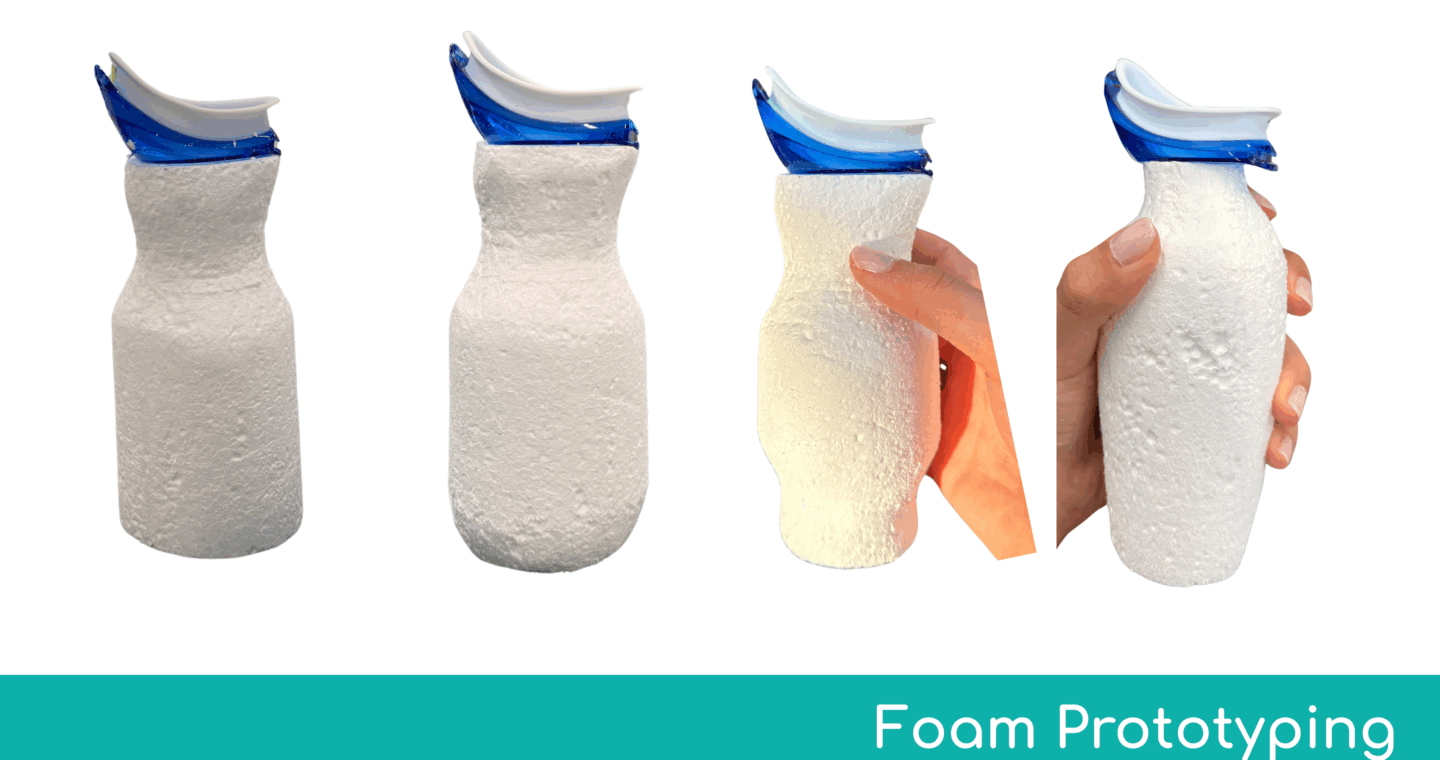

2. DESIGNED FOR ERGONOMIC HANDLING

As demonstrated in the quantitative research, there is a strong correlation between older age and increased non-adherence to treatment. This highlights the importance of addressing common pain points experienced by elderly patients, including a higher prevalence of Parkinson’s disease, arthritis, reduced grip strength, and forgetfulness regarding treatment schedules and the consequences of non-adherence.

The device is designed to support patients with arthritis and Parkinson’s disease by incorporating a larger handle surface and a textured rubber-like material to enhance grip and stability when positioning the b-drop toward the eye. The handle has been ergonomically sized to accommodate users from the 50th percentile female to the 99th percentile male, ensuring comfort and usability across a broad population. The enlarged handle provides greater surface area to hold onto, specifically benefiting users with arthritis or limited dexterity who may struggle with smaller, more traditional eye drop bottles. This intentional shaping supports a secure and confident grip, reducing the likelihood of failed installation and promoting better adherence.

4. CONFIRMATION LIGHTS

To provide the patient with confirmation that the eye drop has been successfully administered, the device features a visual indicator. After dispensing the drop, the light will turn green if the drop has entered the eye, or red if unsuccessful, prompting the user to attempt administration again.

5.0 ON/ OFF BUTTON. 6.0 RECHARGABLE USBC

5.0 On/Off Button
The device features an easy-to-use on/off button, allowing users to activate and deactivate the device as needed throughout their treatment routine.

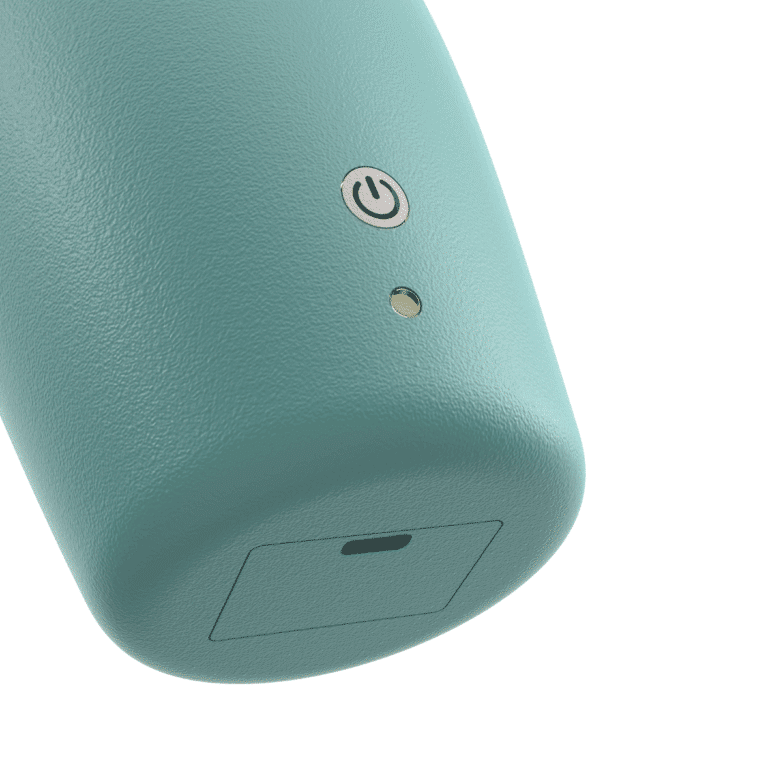

6.0 USB-C Rechargeable Battery
b- drop is powered by a rechargeable 9V lithium-ion battery (650 mAh), compatible with a USB-C charging cable. A charging light illuminates grey while the device is charging to provide a clear visual indicator of battery status.
The bottom of the device includes a hinged compartment that can be opened to replace the battery when required, as well as a USB-C charging port for convenient recharging.

ACCURACY, USEABILITY & TRUST

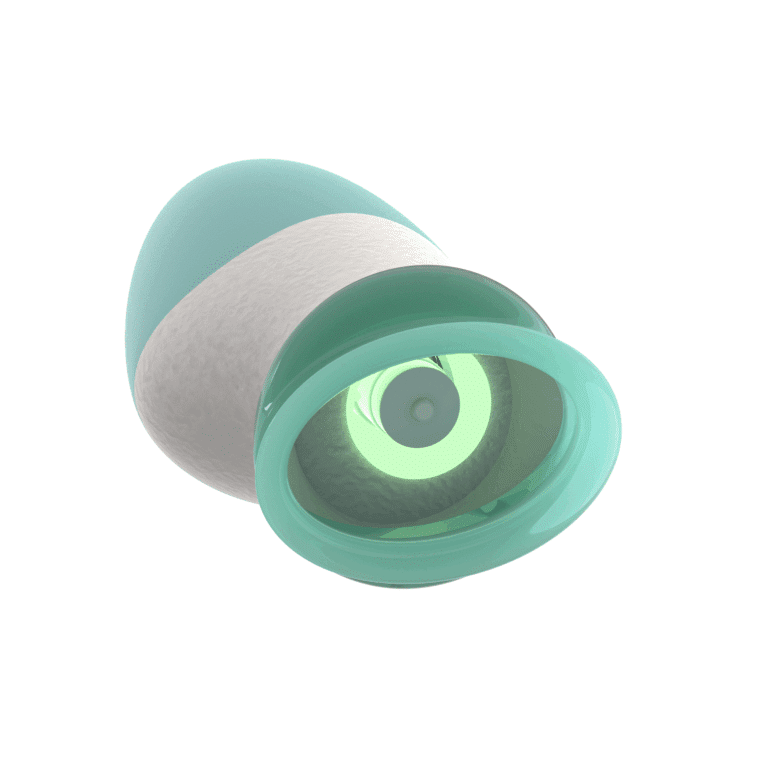

The light function alerts users when the device is positioned at the correct angle and ready for eye drop administration. There is an internal light inside the b-drop which helps the user know exactly when to dispense the drop, reducing uncertainty and improving accuracy. When the b-drop is placed against the patient’s face and aligned with their preferred eye, a mercury-operated angle detection mechanism activates the light. Once the correct angle is achieved, the light turns green to signify that b-drop is ready to administer the drop. The eye drop will then dispense when the user presses the administration button.

This confirmation helps prevent eye drop wastage and reassures users that the medication will be delivered correctly. For many patients, eye drop anxiety or fear of the stinging sensation can make treatment daunting. By providing a reliable visual signal and allowing the user to actively initiate the drop, the device reduces anxiety and supports a strong sense of control and agency in their treatment routine, ultimately improving adherence.

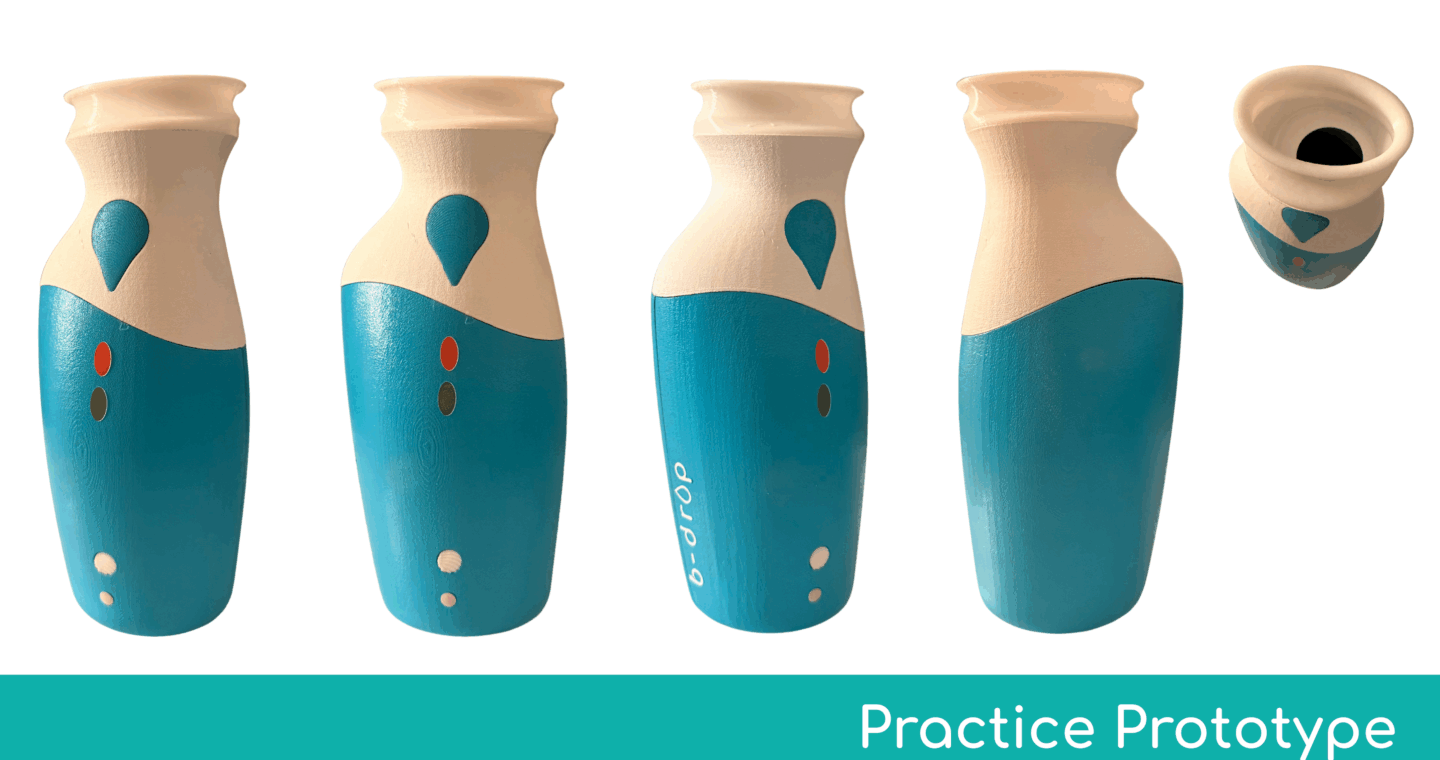

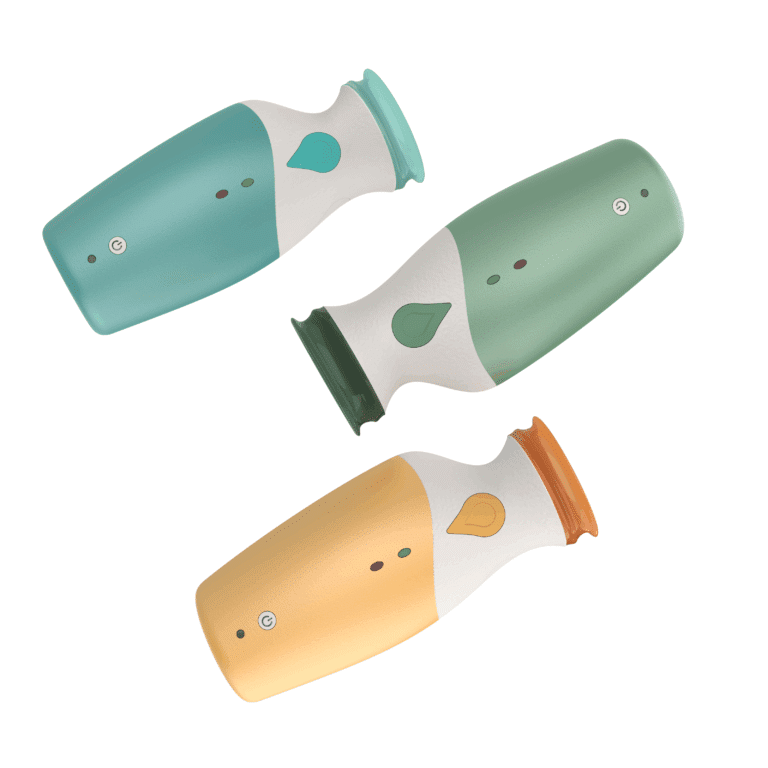

DESIGN FOR PERSONALISATION

Offering b-drop in a range of colours supports user personalisation and aesthetic preference. This aligns the device with the user’s home environment and daily routines, rather than appearing as a confronting medical tool. When a product visually complements the user’s personal style and surroundings, it becomes more desirable to interact with, reducing the stigma or avoidance often associated with medical devices.

This approach draws strongly on the design principle of emotional durability. Colour choice can foster a sense of ownership, trust, and emotional connection to the product, enhancing the user’s willingness to keep the device within reach and incorporate it into their everyday life. By allowing users to select a preferred colour, b-drop encourages empowerment and agency, which can motivate ongoing and voluntary participation in their treatment regimen.

Ultimately, designing for aesthetic preference contributes to a positive user experience, strengthens the patient–device relationship, and supports long-term treatment adherence.

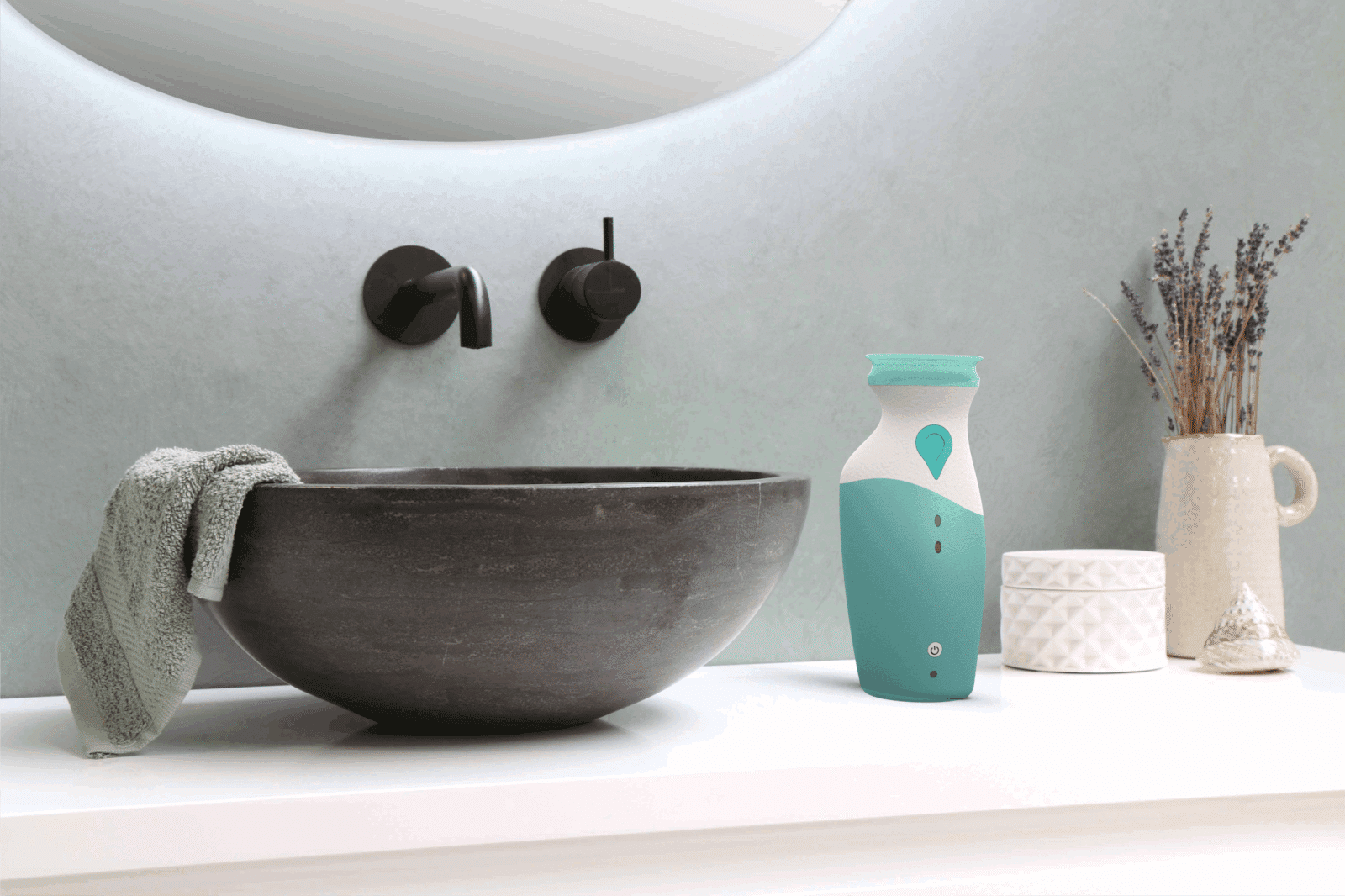

designed for context opportunity

The device is intentionally designed for the bathroom context, where patients most commonly administer their eye drops as part of their morning and evening routines. Aligning b-drop with this established daily pattern supports adherence to twice daily dosing, as it is seamlessly incorporated into familiar self-care rituals such as brushing teeth or washing the face.

Positioning the device within the bathroom environment also aligns with a clean and streamlined aesthetic, reducing the clinical connotations often associated with medical equipment. By allowing the device to blend into the bathroom space, users are more likely to keep it visible and accessible—an important strategy for prompting medication use and preventing missed doses. This thoughtful contextual design reinforces convenience, consistency, and ultimately better treatment adherence.

design for manufacturing

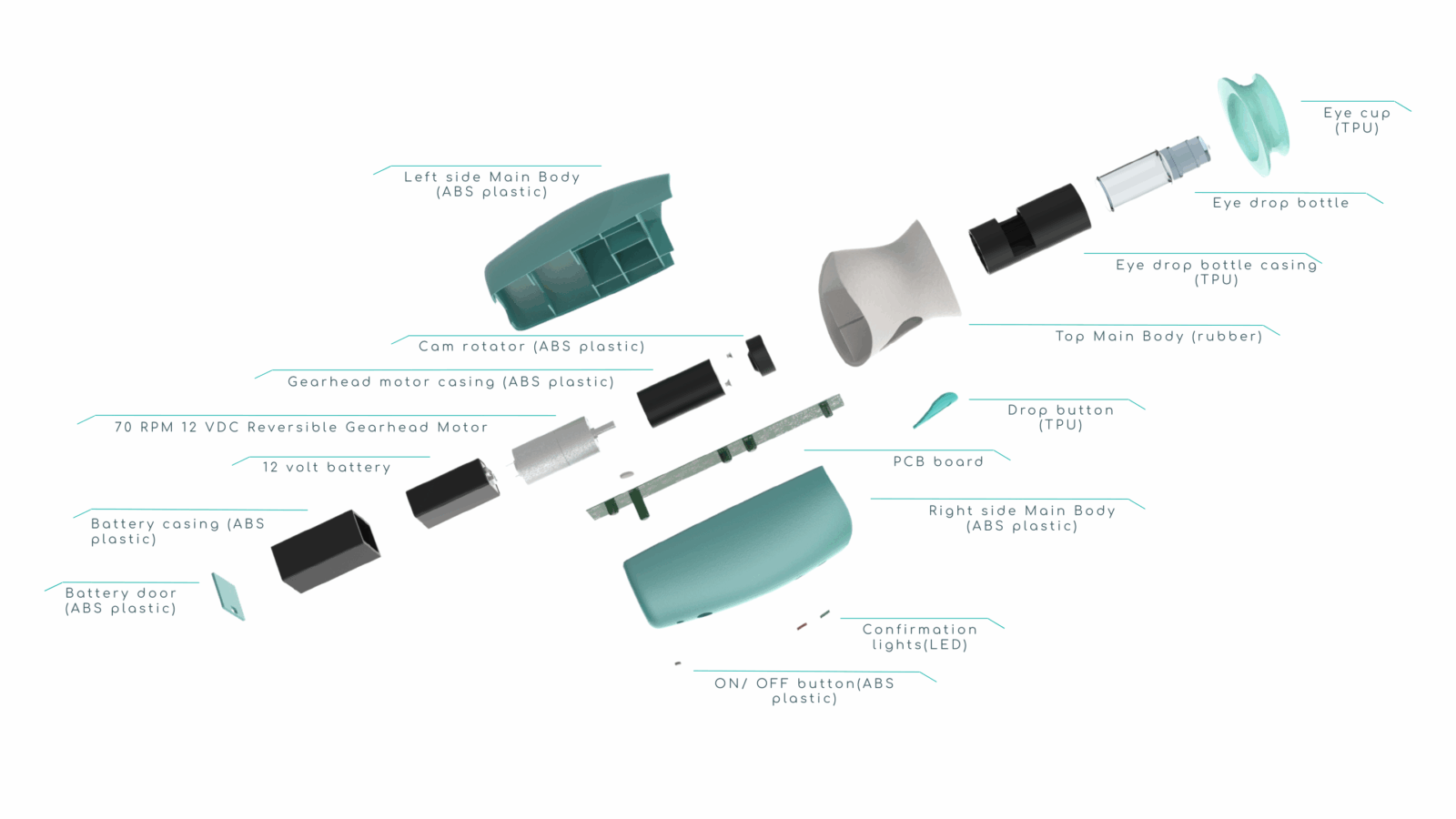

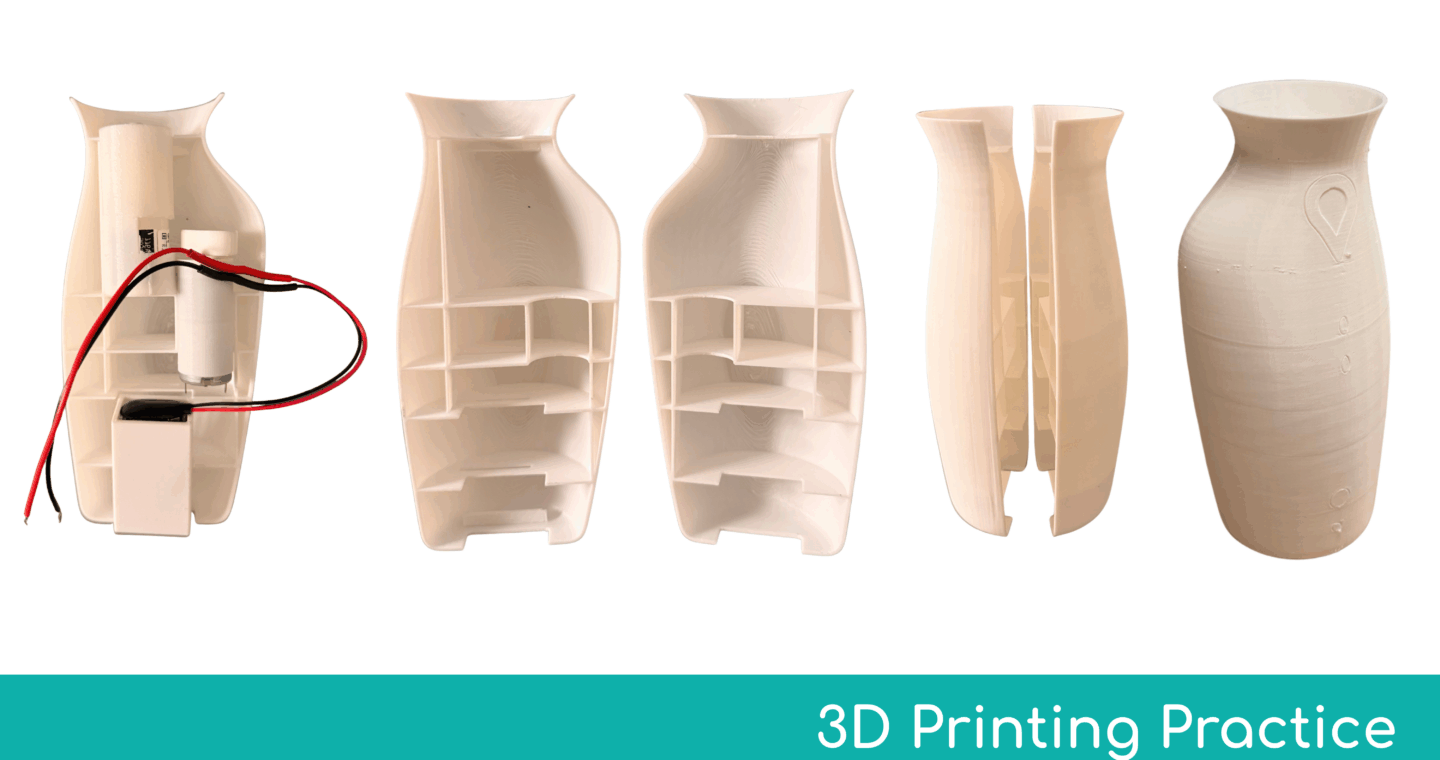

Designed for disassembly, the device consists of 15 injection-moulded parts and five off-the-shelf components. The main body is manufactured using injection-moulded ABS plastic, chosen for its durability, water resistance, and suitability for long-term use in a bathroom environment. The neck of the b-drop features a rubber-textured material to enhance ergonomic grip and handling stability, particularly for users with reduced strength or dexterity.

The rechargeable battery is both replaceable and accessible through the hinged base of the device, supporting longevity, sustainability, and user convenience. Overall, the material selection and manufacturing processes ensure that the device remains robust, hygienic, and visually compatible with common bathroom aesthetics—encouraging the user to keep it stored within reach and maintain their treatment adherence.

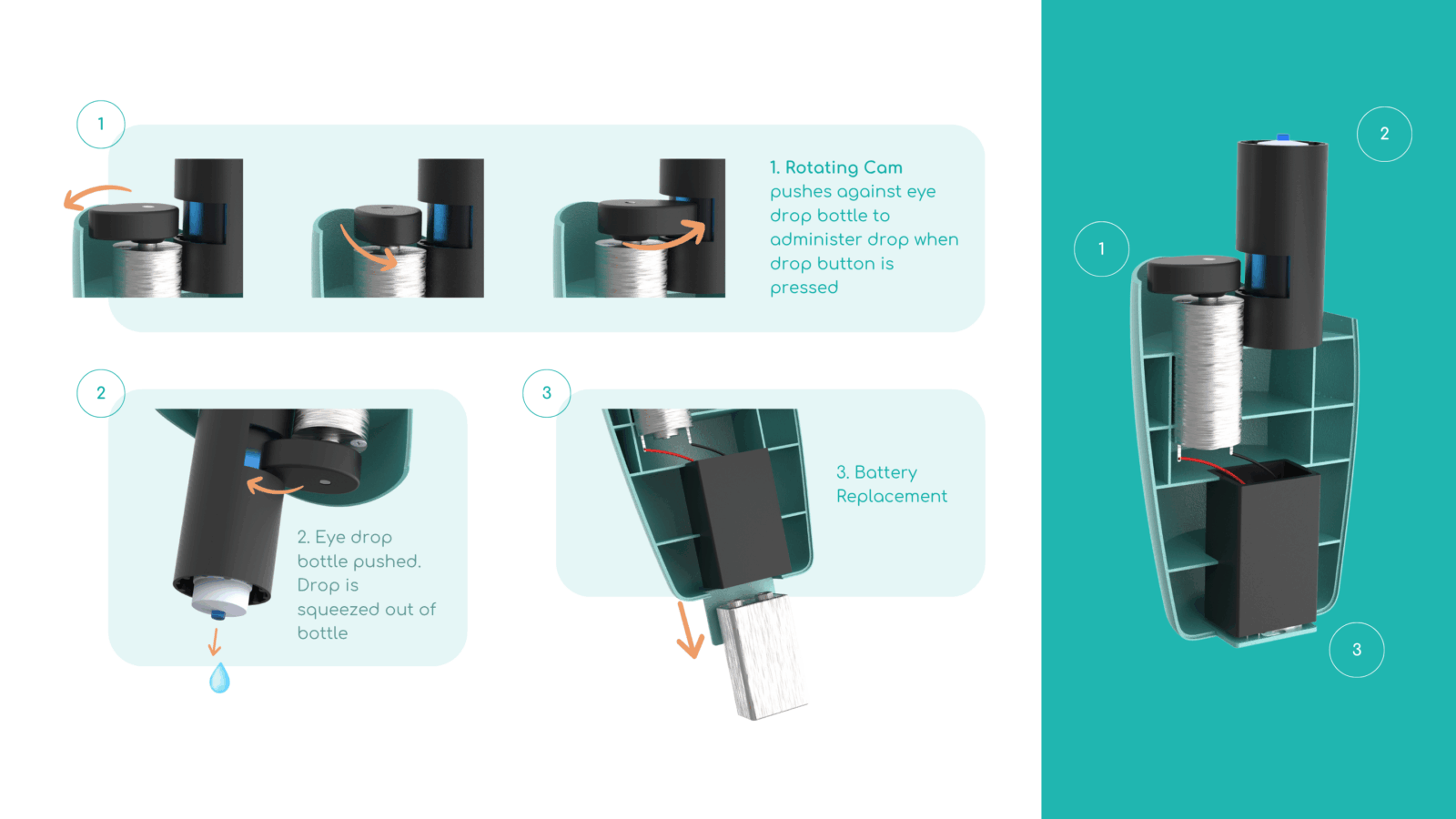

internal mechanism function
